This series CNC lathe is suitable for performing internal and external turning, facing, slotting and machining of metric, module and diameter threads as well as automatic change of tool post. It can realize continuously turning and preserving machining process of many workpiece for choice. It is suitable for turning shaft, disc and sleeve workpieces, as well as small batch production and various similar workpiece with different spec. and kinds.
This series lathes have strong power with good rigidity, and of pleasing appearance with easy operation. The accuracy of workpiece it turned reaches IT7, and surface roughness is Ra 3.2цm.
|Swing over bed||mm||630||830||930|
|Swing over cross slide||mm||310||490||590|
|Max. Part length||mm||1000, 1500, 2000, 3000,4500|
|Max. Turning length||mm||850,1350,1850,2850,4350|
|Spindle bore diameter||mm||¢105 / optional 130|
|Number of steps of spindle speeds||steps||18 steps (CKC)|
Two steps and infinitely variable speed (CKD)
|Spindle speed range||rpm||13-1000(CKC)/10-800(CKD)|
|Spindle bore taper||Metric 120 (105 spindle) /|
Metric 140 (130 spindle)
|Main motor power||kw||11|
|Transverse travel of tailstock||mm||±15|
|Rapid traverse rate||mm/min||X: 4000 Z:8000|
|Size of tool rod||mm×mm||32×32|
|Z travel||mm||1000, 1500, 2000, 3000,4500|
|Accuracy||Positioning accuracy||mm||X: 0.03, Z: 0.04, 0.045, 0.05|
|Repeatability||mm||X: 0.012, Z: 0.016, 0.02,0.025|
|Flatness||mm||0.025/300 (for concace only)|
|Standard CNC System||Um||GSK980T / SIEMENS / AS REQUEST|
|Length||mm||3155,3620, 4135, 5135, 6635|

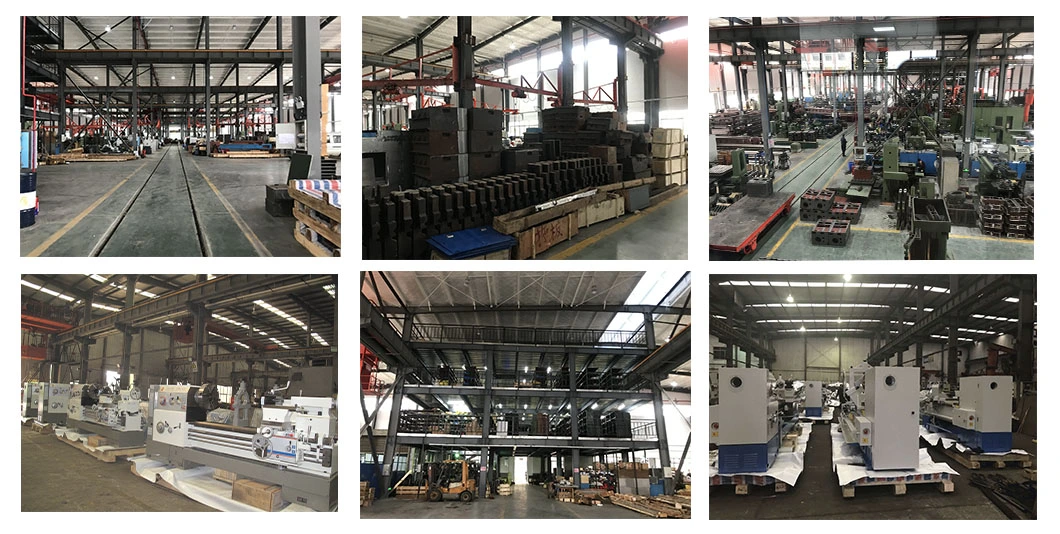

Jinling is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines. We got ISO9001 and CE certificate to ensure the best in quality.
We have strong partnerships in Europe, America, South America, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop JINLING to a global brand. Wherever you are from, we are looking forward to explore new market with you.
Usually the delivery time takes 45 days. But it also depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. And also parts caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
