6/8 station tool CNC turret lathe

Product Description CAK6140 CNC LATHE MACHINE SPECIFICATION: SpecificationsCAK6140CAK6150CAK6161CAK6166CAK6180Max.Swing over bed400mm500mm610mm660mm800mmMax.workpiece length750/1000/1500/2000/3000Spindle taperMorse NO.6(MT6) [φ90 1:20(B type)]  [φ113  1:20

Featured Products

Product Description

6/8 Station Tools CNC Turret Lathe
Max.Swing over bed400mm500mm610mm660mm800mm
Max.workpiece length750/1000/1500/2000/3000
Spindle taperMorse NO.6(MT6) [φ90 1:20(B type)]  [φ113  1:20(C type)]
Chuck sizeC6[D8 (B TYPE ,C TYPE)]
Spindle bore diameterφ52MM, [φ80MM (BTYPE)],  [φ105MM(C TYPE)]
Range of spindle speeds(3 steps)
(Auto.change gear)
Independent spindle:100-1600r/min
21-1500r/min ( I 162-1500  II 66-500   III  21-150)
Tail stock center travel150mm
Tail stock sleeve taperMT5
Positioning accuracy±0.015mm
Repositioning accuracy±0.006mm
X/Z rapid traverse4/6m/min
Spindle Motor7.5KW11KW
Overall dimensions for 750mm2550x1550x1700mm2550x1550x1900mm
Overall dimensions for 1000mm2750x1550x1700mm2750x1550x1900mm
Overall dimensions for 1500mm3250x1550x1700mm3250x1550x1900mm
Overall dimensions for 2000mm3700x1550x1700mm3700x1550x1900mm
Overall dimensions for 3000mm4710x1550x1700mm4710x1550x1900mm
Overall dimensions for 750mm2800KG2100KG2900KG2120KG2850KG2250KG2900KG2300KG3000KG2400KG
Overall dimensions for 1000mm2900KG2200KG3000KG2240KG3000KG2400KG3050KG2450KG3150KG2550KG
Overall dimensions for 1500mm3150KG2300KG3200KG2350KG3200KG2600KG3250KG2650KG3350KG2750KG
Overall dimensions for 2000mm3350KG2700KG3400KG2740KG3400KG2830KG3450KG2880KG3550KG2980KG
Overall dimensions for 3000mm4100KG3500KG4200KG3600KG4250KG3650KG4300KG3700KG4400KG3800KG

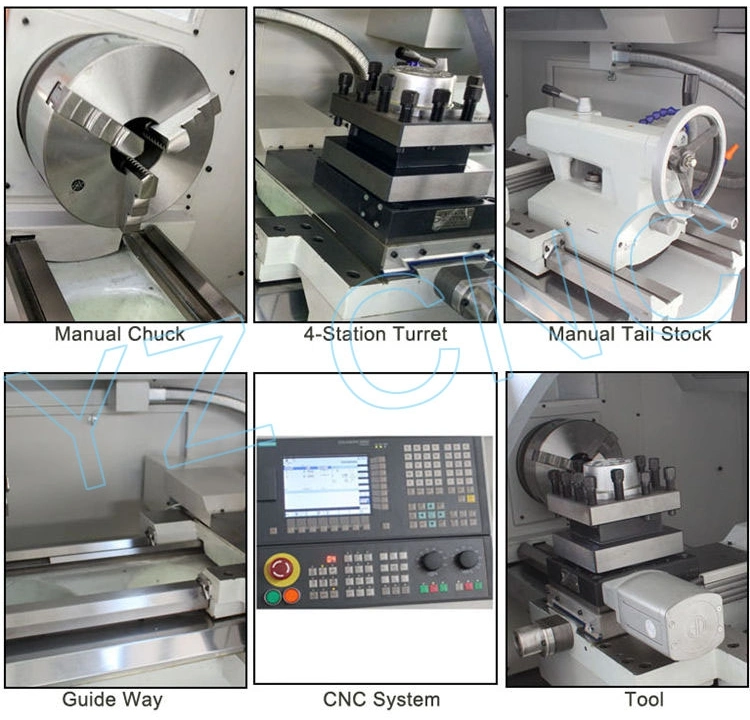

Standard configuration:

1) System:GSK928TD-L, servo motor and drive.
2) Manual 3-jaw chuck.
3) Four station electric tool post .
4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.

Optional configuration:

1) CNC system: Siemens, Fanuc, KND, etc.
2)Hydraulic chuck, pneumatic chuck .
3)Hydraulic tailstock, pneumatic tailstock.
4) 6/8station electric tool post.
5)Automatic bar feeder.

380V/220V/415V/480V 3phase
220V single
Important Notice:Before place order, please confirm with our sales about your local electrical voltage.

6/8 Station Tools CNC Turret Lathe

6/8 Station Tools CNC Turret Lathe6/8 Station Tools CNC Turret Lathe

6/8 Station Tools CNC Turret Lathe
Machine Quality Inspection
6/8 Station Tools CNC Turret Lathe

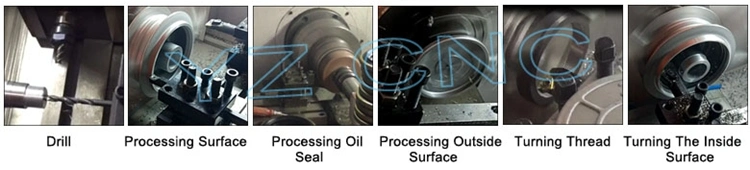

Processing Case
6/8 Station Tools CNC Turret Lathe

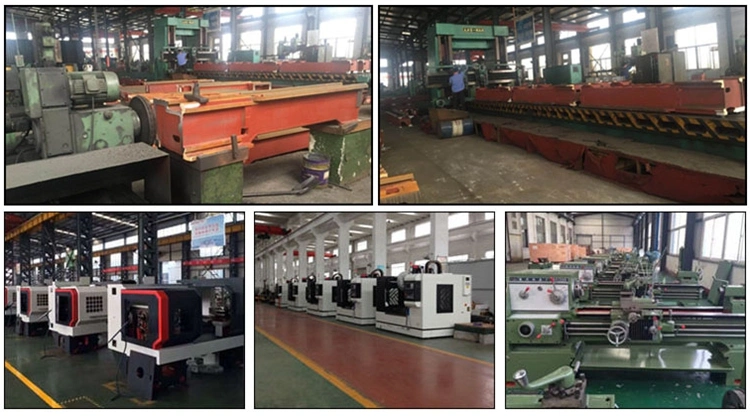

Company Profile
Taian Yuzhuo Machinery Manufacturing Co., Ltd. is a professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.
6/8 Station Tools CNC Turret Lathe
6/8 Station Tools CNC Turret Lathe
CE , SGS, Alibaba High-quality Supplier and Made-In-China Gold Supplier.
6/8 Station Tools CNC Turret Lathe
6/8 Station Tools CNC Turret Lathe
